Payout / Take-Ups
Horizontal Coiling and Decoiling Systems provide consistent performance with reduced downtime for reel changes. Each layer of product holds 4-5 times the amount of a single reel. Our customers use palletized product for finished packaging, but also as an intermediate packaging step between different manufacturing processes. Horizontal coilers are used successfully with both delicate electrical terminals and rugged strip stock. Advanced tension and paper interleaf options are also available. Turntable parameters can vary depending on the application. For coilers we have two sets of standard parameters. For lighter weight pallets, 1500 lbs and 52" diameter table, and for heavier weight pallets, 4500 lbs and 44" diameter table. If your process requires a customization, we will modify an existing design or create a new design, without the excessive cost usually associated with custom machines.
Payouts
Horizontal Coiling and Decoiling Systems provide consistent performance with reduced downtime for reel changes. Each layer of product holds 4-5 times the amount of a single reel. Our customers use palletized product for finished packaging, but also as an intermediate packaging step between different manufacturing processes. Horizontal coilers are used successfully with both delicate electrical terminals and rugged strip stock. Advanced tension and paper interleaf options are also available. Turntable parameters can vary depending on the application. For coilers we have two sets of standard parameters. For lighter weight pallets, 1500 lbs and 52" diameter table, and for heavier weight pallets, 4500 lbs and 44" diameter table. If your process requires a customization, we will modify an existing design or create a new design, without the excessive cost usually associated with custom machines.

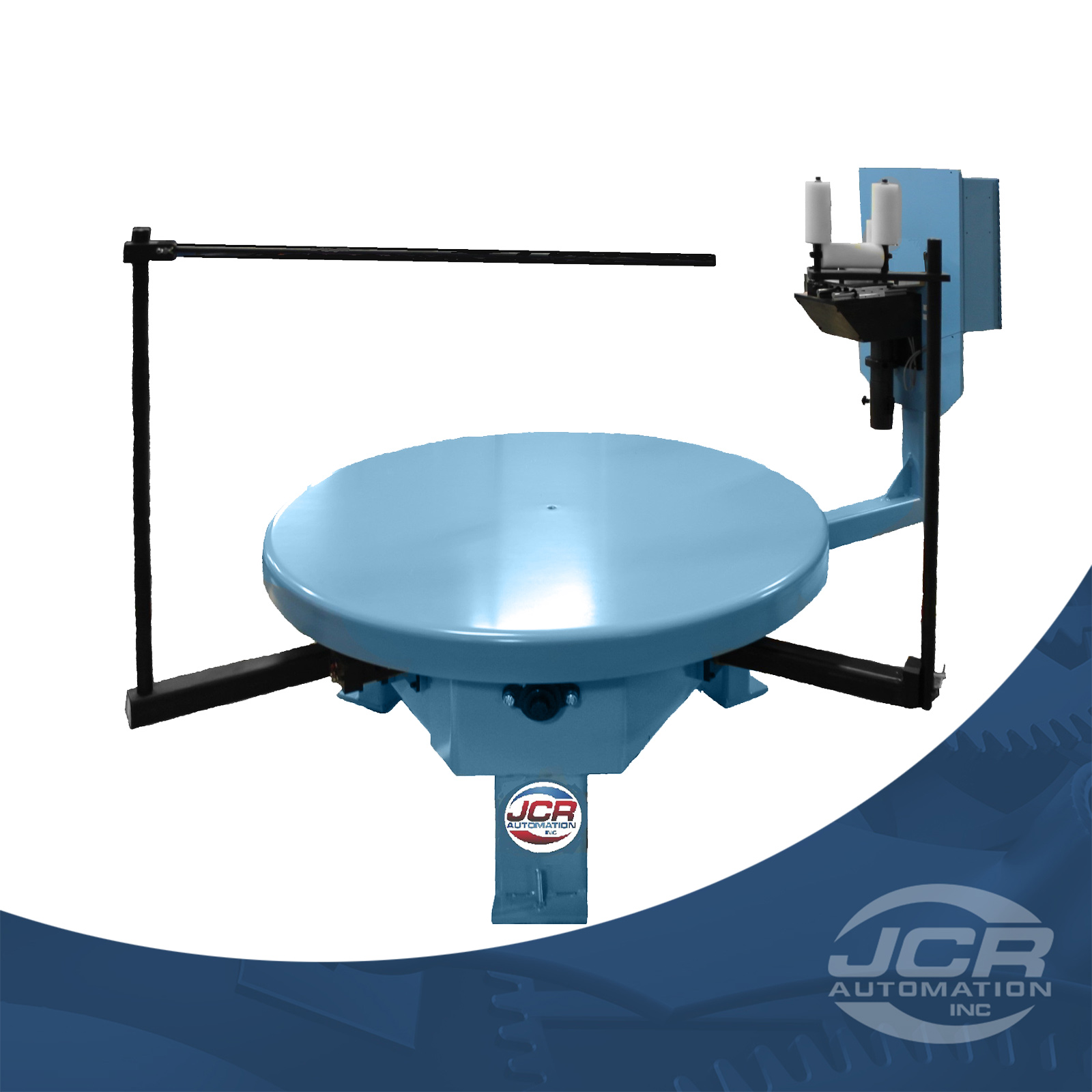

WM501P
Horizontal Pallet Winding System single strip payout. Table platform with non-skid surface, variable feed rate, and ultrasonic loop control.
WM501D
Pallet/Rim Drive Payout. Table top with Rim Drive roller slots and sensor locking position, Rim drive assembly with manually adjustable lift
WM550P
Two (2) Strand Dual Pallet Payout, Weighted dancer with position feedback for table speed control, Two nip pullers with non-contact ultrasonic loop control
Take-Ups
Horizontal Coiling and Decoiling Systems provide consistent performance with reduced downtime for reel changes. Each layer of product holds 4-5 times the amount of a single reel. Our customers use palletized product for finished packaging, but also as an intermediate packaging step between different manufacturing processes. Horizontal coilers are used successfully with both delicate electrical terminals and rugged strip stock. Advanced tension and paper interleaf options are also available. Turntable parameters can vary depending on the application. For coilers we have two sets of standard parameters. For lighter weight pallets, 1500 lbs and 52" diameter table, and for heavier weight pallets, 4500 lbs and 44" diameter table. If your process requires a customization, we will modify an existing design or create a new design, without the excessive cost usually associated with custom machines.
WM501T
Single Table Platform with CW or CCW table operation has a variable feed rate. Pallet Diameter of 44", can feed up to 1200 IPM.
WM510
Single table platform with CW or CCW switch selectable. Pallet Diameter of 44" and a pallet capacity of 4500 pounds can feed up to 1200 IPM.
WM510 + Accumulator
Horizontal Pallet Winding System with single strip take-up and accumulator. A single table platform with non-skid surface and touch screen operator interface.
WM550T
Horizontal Pallet Winding System. System has a single and dual strip applications. The dual 44" 4500lb over and under table offer maximum space utilization.
Horizontal Coiler
Single Table Platform with CW or CCW table operation has a variable feed rate.
